Introduction
Surface Acoustic Wave (SAW) technology serves as a fundamental component in many modern electronic devices, including smartphones, GPS systems, and Wi-Fi routers. This technology allows for the development of compact and reliable components that play a critical role in various sectors, including communication, aerospace, and defense. As the demand for smaller and more efficient devices continues to rise, the importance of SAW technology becomes increasingly apparent.
SAW filters are designed to select specific frequency bands essential for ensuring clear and precise signal transmission. The design and performance of these filters are crucial for the effectiveness of high-frequency applications, where even minor deviations can lead to significant issues in signal integrity and overall system performance. Therefore, the ability to accurately model SAW filters becomes paramount.
Effective modeling enables engineers to explore design options and optimize performance without the necessity of repeatedly creating physical prototypes. This not only enhances the design process but also reduces development time and costs. Moreover, advanced simulations can provide insights into potential design flaws or inefficiencies early in the development cycle, allowing for timely adjustments and improvements.
In this blog post, we explore how Quanscient’s simulation platform, Quanscient Allsolve offers comprehensive tools tailored to enhance SAW filter design. By leveraging these tools, engineers can optimize filter performance while effectively managing both time and resource expenditures, ultimately leading to better performance for high-frequency devices.
Understanding SAW technology and its applications
SAW technology underpins a wide variety of applications due to its ability to provide compact, reliable, and efficient solutions for handling high-frequency signals.
- Mobile communication devices: In smartphones and other mobile devices, SAW filters help select and filter out the desired frequency bands while rejecting any unwanted signals. They allow mobile devices to process only relevant communication signals, reducing noise and interference.
- Wi-Fi routers and bluetooth modules: SAW filters are also used in wireless communication devices, such as Wi-Fi routers and Bluetooth modules, where they play a crucial role in ensuring clean and accurate transmission and reception of signals. By filtering out spurious and undesired frequencies, they improve the overall performance of wireless communication.
- Aerospace and defense: In these high-stakes industries, the small size and high reliability of SAW filters are critical for applications that require precision and stability, such as radar systems and communication devices. The filters’ ability to withstand harsh environments while maintaining consistent performance makes them indispensable in such fields.
- Automative and IoT devices: With the increasing connectivity of modern vehicles and IoT systems, SAW filters help ensure clear communication between different devices by precisely filtering frequency signals, leading to better performance and reliability.
In all of these applications, the accuracy of SAW filter design is critical. Missteps in design could lead to communication failures, signal interference, or degraded performance—especially in high-frequency environments where even small deviations can have significant impacts.
Why is simulating SAW filters essential?
Given the critical role that SAW filters play in modern communication and signal processing, simulating their performance before manufacturing is a necessary step in the design process. Accurate simulation can provide several advantages:
- Ensuring performance at high frequencies: In devices such as smartphones, RF (Radio Frequency) front-end modules rely on SAW filters for precise performance at high frequencies. Any failure to achieve the desired frequency response could lead to poor communication, dropped signals, or interference with other devices. Simulating the behavior of SAW filters at these frequencies ensures that the device will perform as expected in real-world conditions.
- Reducing costs and development time: Manufacturing physical prototypes is both time-consuming and expensive, especially when multiple iterations are required to achieve the desired performance. By simulating filter behavior in software, engineers can identify and address design flaws early in the process. This reduces the need for costly prototypes and accelerates the time to market.
- Exploring new materials and designs: With simulation, engineers have the freedom to explore new materials, design approaches, and geometries that might not be feasible to test with physical prototypes. This opens up possibilities for innovation and optimization in SAW filter design.
- Predicting frequency response and bandwidth: One of the most important aspects of SAW filters is their precise frequency response, which depends on factors such as the interdigital transducer (IDT) configuration, substrate material, and electrode layout. Simulations allow engineers to accurately predict the filter’s passband, stopband, roll-off, and other characteristics, ensuring that the filter meets the specifications required for its application.
In essence, simulating SAW filters enables engineers to design more reliable, efficient, and high-performing products while minimizing the costs and time associated with traditional design and testing methods.
Quanscient Allsolve: A cloud-based solution for SAW filters design challenges
Simulating SAW filters presents significant technical challenges due to the complex nature of the physical processes involved. These filters rely on a combination of piezoelectric, electrostatic, and elastic wave phenomena, making the problem inherently multiphysics in nature. This is where Quanscient Allsolve stands out as a powerful tool for engineers looking to optimize SAW filter performance.
- Fully coupled multiphysics simulation: Quanscient Allsolve is one of the few platforms capable of fully coupling all the relevant physical phenomena involved in SAW filter operation. Engineers can simulate the interaction between piezoelectric materials, electrostatic fields, and elastic wave propagation in complex geometries. By capturing the full range of interactions, the platform delivers highly accurate predictions of filter behavior, essential for ensuring optimal performance in real-world applications.
- Handling both harmonic and time-domain simulations: Its ability to handle both harmonic and time-domain simulations gives engineers the flexibility to explore different aspects of SAW filter behavior. Harmonic simulations are useful for analyzing frequency response, while time-domain simulations provide insights into transient phenomena and time-varying signals.
- Frequency sweep capabilities: One of the key performance metrics for SAW filters is the resonance frequency. Quanscient Allsolve includes frequency sweep capabilities, allowing engineers to identify the resonance frequency and optimize the filter design for this critical parameter. Automating the frequency sweep process helps engineers save time and effort while ensuring accurate results.
- Geometric sweep feature in the API: The geometric sweep feature in the API enhances the platform’s utility for SAW filter design. Engineers are able to automatically test different geometries to find the optimal design for a given application, significantly speeding up the design process and improving overall performance.
These features make Quanscient Allsolve an indispensable tool for engineers working with SAW filters, offering the accuracy, flexibility, and speed needed to tackle the complexities of modern high-frequency applications.
Case example: SAW filter simulation with Quanscient Allsolve
Technical details of the simulations
To demonstrate the key benefits of Quanscient Allsolve, we ran a SAW filter simulation. The following technical details provide an example of how Quanscient Allsolve is applied to SAW filter simulations:
- Coupled physics: The simulation includes piezoelectric effects, electrostatic fields, and elastic wave propagation. By coupling these physical processes, the simulation provides a detailed and accurate prediction of how the SAW filter will behave in real-world conditions.
- Analysis type: Both harmonic and time-domain simulations were used in this case, allowing engineers to explore the filter’s behavior under different operating conditions. Harmonic simulations help predict the filter’s frequency response, while time-domain simulations allow for the analysis of transient phenomena.
- Model size: The simulation model consists of 3.8 million Degrees of Freedom (DoFs). The large model size ensures that all relevant details of the SAW filter are captured, leading to highly accurate results.
- Simulation results: The simulation was run with 40 cores, 40x16 GB RAM, and a runtime of 218 seconds, consuming 2.4 core hours.
These specifications demonstrate the platform’s ability to handle large-scale simulations efficiently, delivering results in a fraction of the time compared to traditional methods.
In addition, Quanscient Allsolve delivers highly detailed and accurate results that provide engineers with valuable insights into SAW filter performance. In this case, they were:
- Surface wave propagation: The simulation provides a detailed visualization of how surface waves propagate along the surface of the device. Understanding wave propagation is essential for optimizing the filter’s design to ensure that it performs effectively in high-frequency applications.
- Scattering parameters: Quanscient Allsolve provides detailed scattering parameters, which describe how energy is transmitted and reflected through the filter. These parameters are essential for understanding the filter’s efficiency and effectiveness in handling high-frequency signals.
- Frequency response and bandwidth: The simulation predicts the filter’s frequency response and bandwidth, two of the most important performance metrics for SAW filters. By accurately predicting these parameters, engineers can optimize the filter’s design to meet the requirements of specific applications.
Use cases

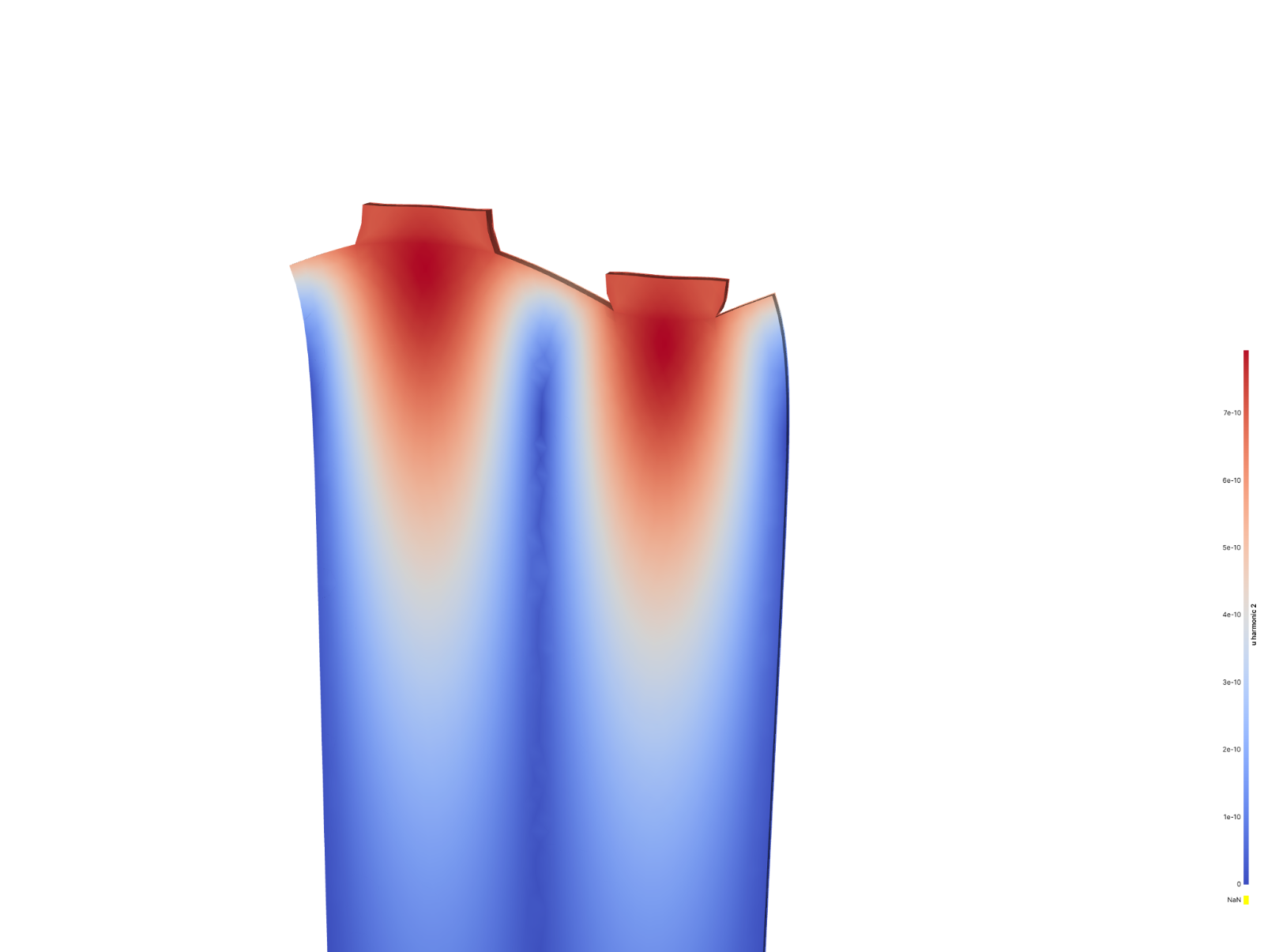

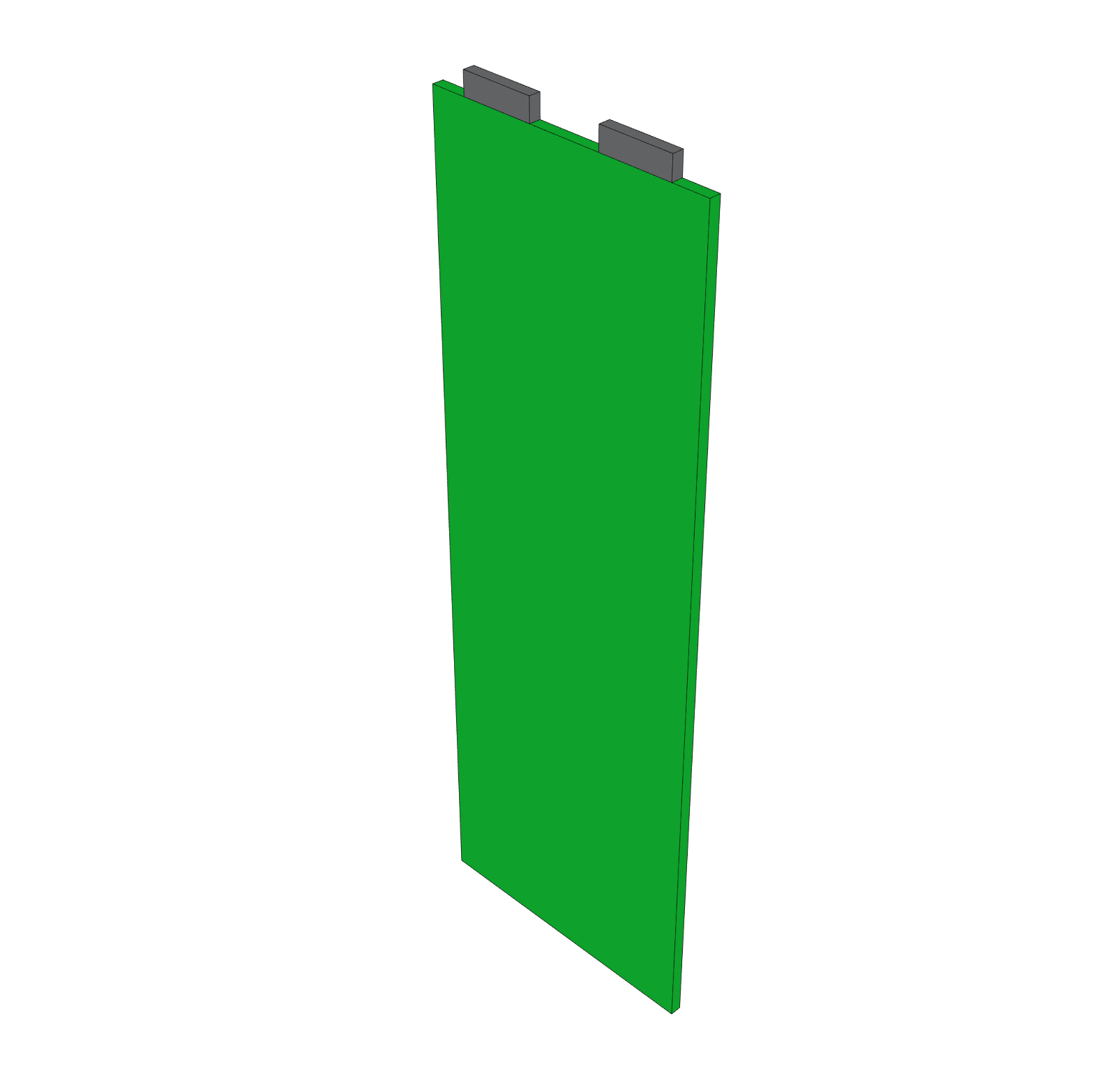

Single-cell periodic simulation (2.5D)
We focus on simulating the wave interactions within a single unit cell of the SAW structure to analyze wave modes and resonance frequencies.

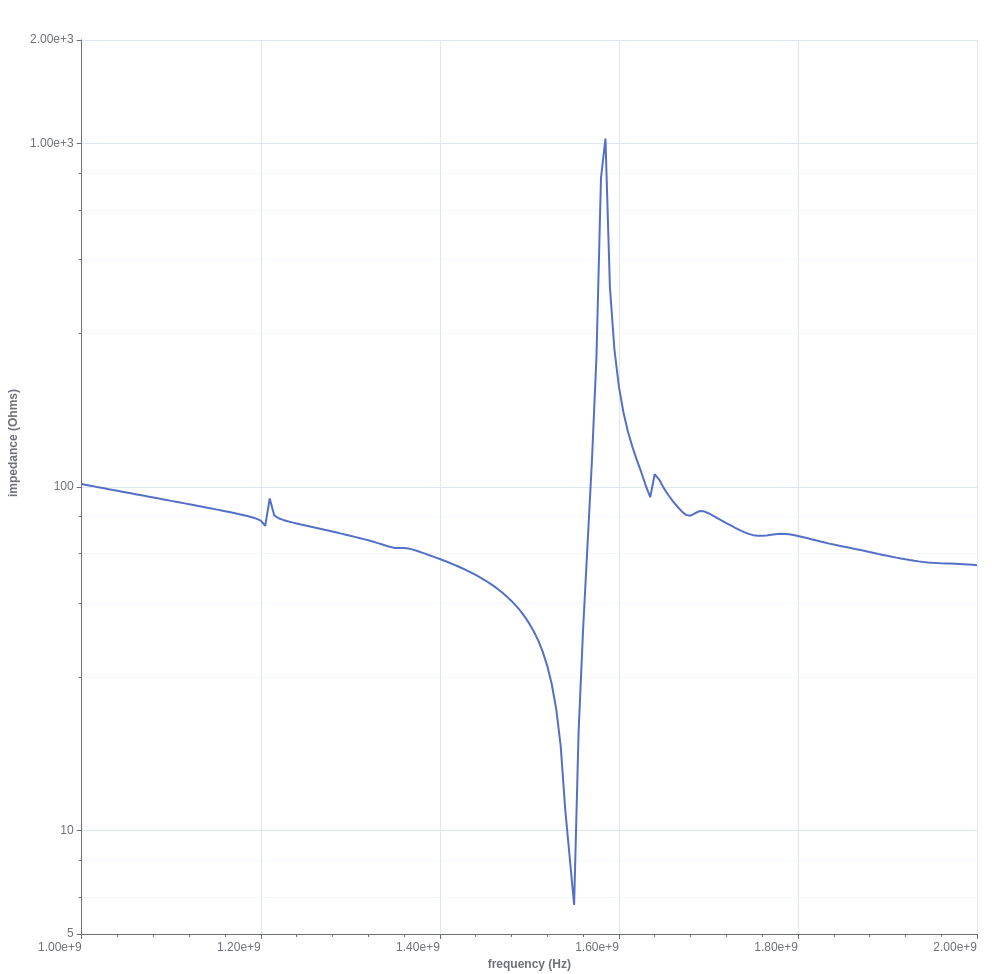

Frequency sweep

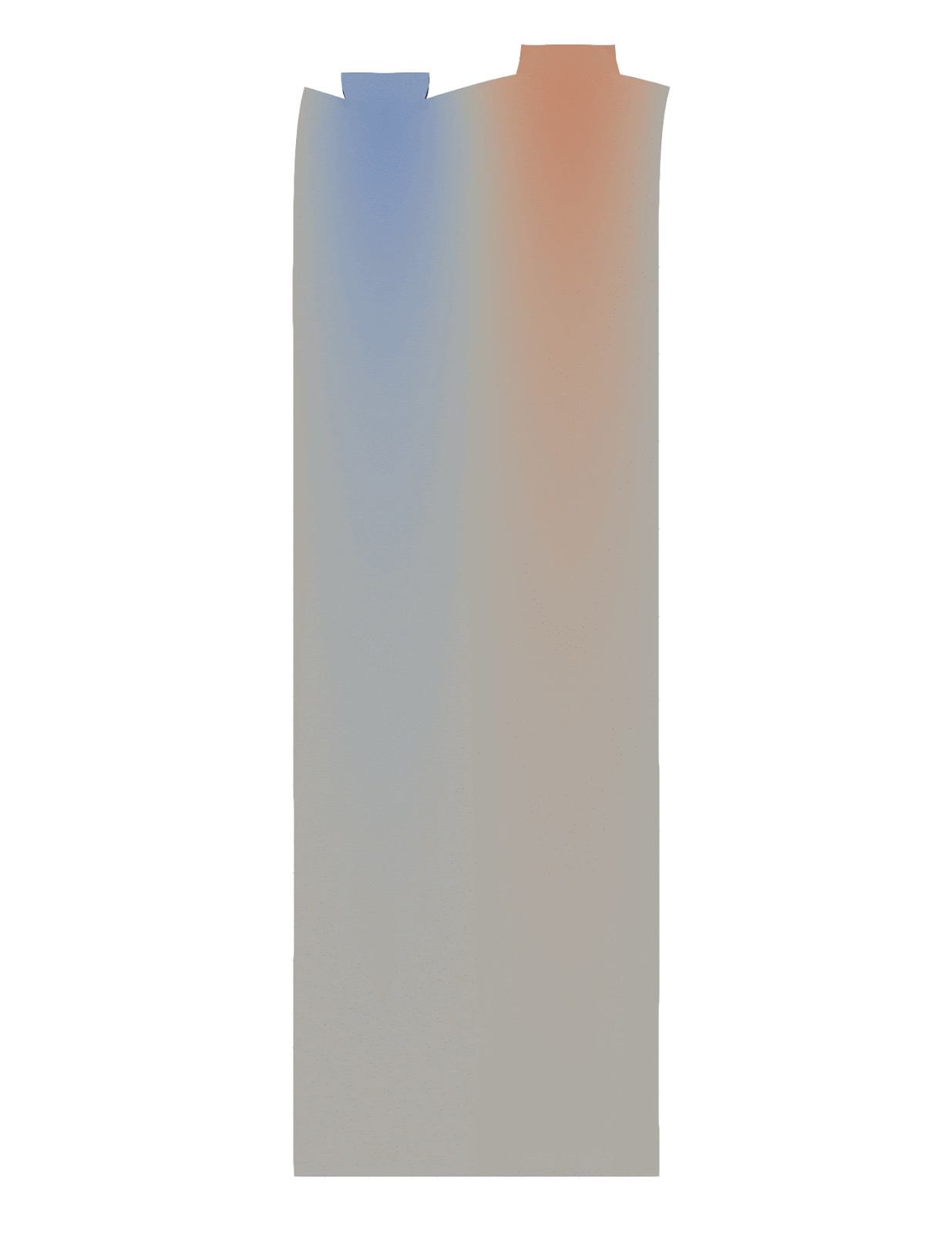

We compute the impedance of the device in terms of frequency to get the resonance frequency and shape modes.
Computational cost
We simulated 200 frequency points, each frequency point took 22s. We are able to run 50 frequency points at the same time so the total run time is ~ 1min 30s.
If you would run this sequencely you would need ~ 1hour 13min

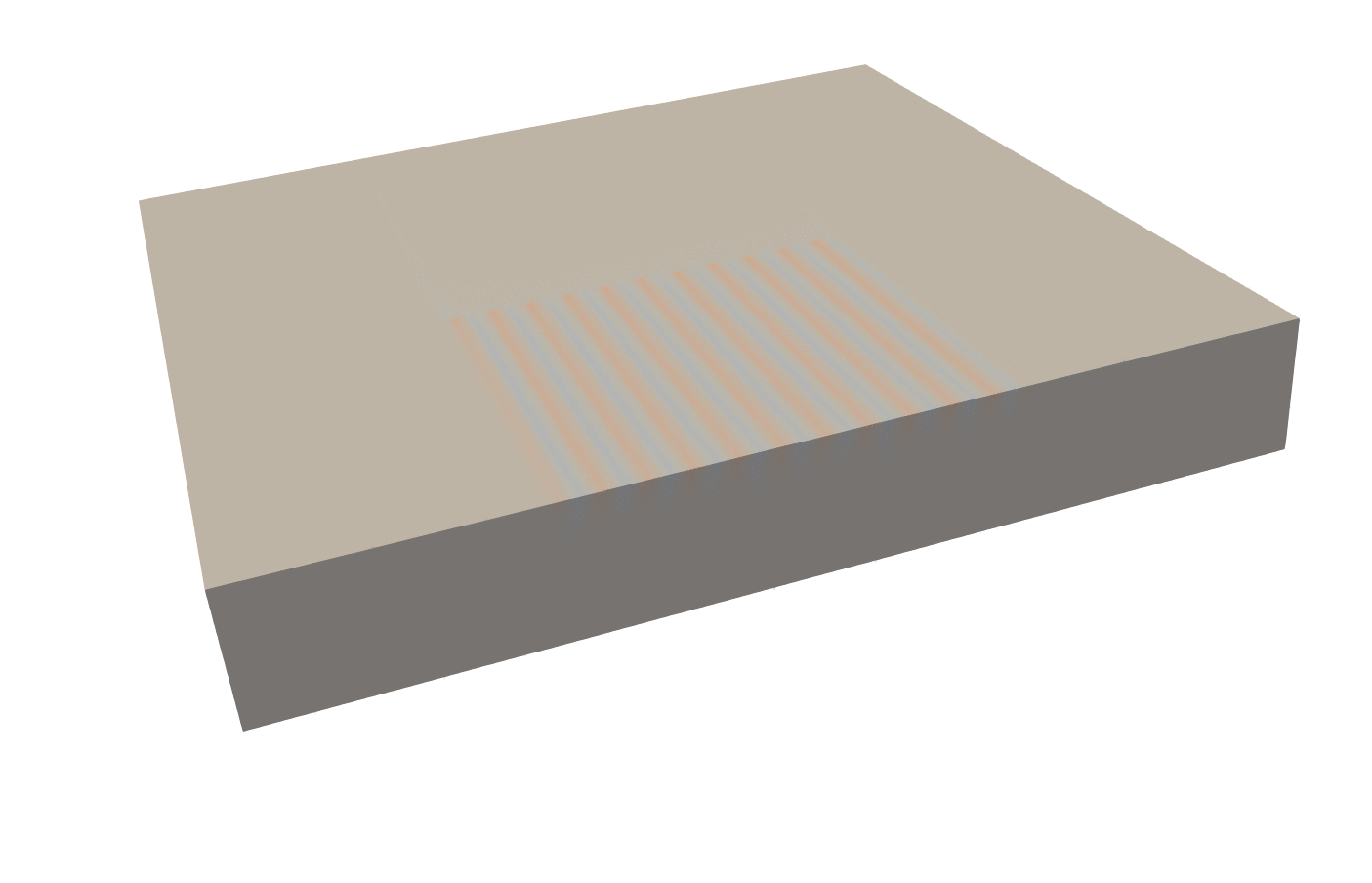

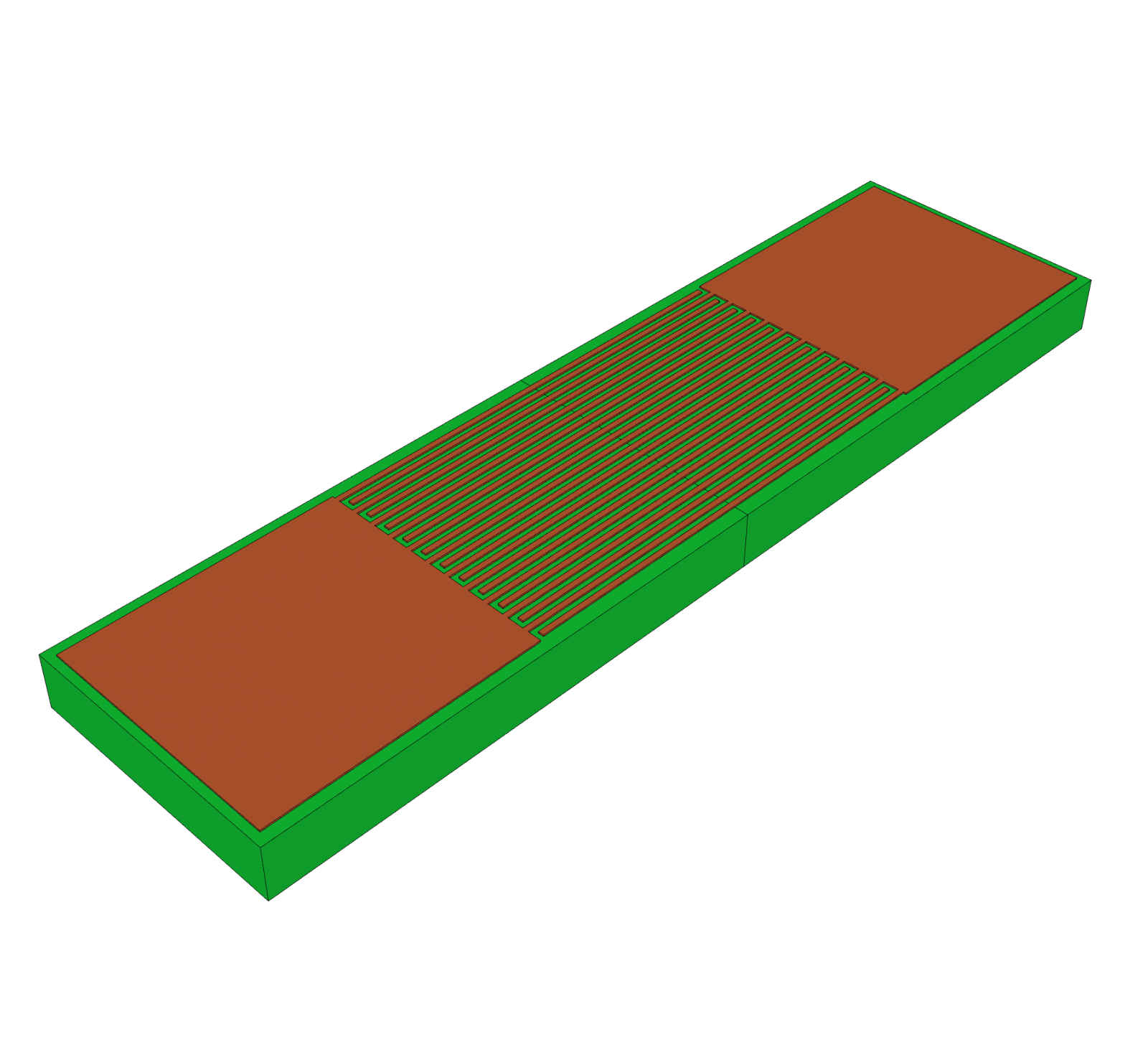

Transient simulation looking at edge leakage in a section of a 3D SAW filter
Conclusion
Quanscient Allsolve is a powerful tool for simulating SAW filters, offering advanced features that address the challenges of multiphysics analysis. With its fully coupled simulations, frequency sweep capabilities, and future geometric sweep features, Quanscient Allsolve enables engineers to design high-performance SAW filters more efficiently. By reducing simulation time, providing access to scalable resources, and integrating seamlessly into existing design workflows, Quanscient Allsolve empowers engineers to develop next-generation SAW filters for modern high-frequency applications.
